Pipe Elbow
Pipe Elbow
LONG RADIUS ELBOWS, SHORT RADIUS ELBOW, CARBON STEEL ELBOWS, STAINLESS STEEL ELBOW MANUFACTURER A234 WPB, A420 WPL6, A234 WP11, A234 WP5, A403 WP304L, A403 WP316L | ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43 LONG/SHORT RADIUS ELBOWS – 90° ELBOW, 45° ELBOW, 180° ELBOW, 1D, 2D, 3D, 4D, 5D, 10D, CUSTOM RADIUS ELBOWS
Carbon Steel Elbows, Stainless Steel Elbows, Alloy Steel Elbows, Long Radius Elbows, Short Radius Elbows. 3D Elbows, 5D Elbows, Custom Radius Elbow Supplier in India, 316 Elbow, A234 WPB Elbows Manufacturer, A420 WPL6 Elbow, A234 WP11 Elbow, A234 WP5 Elbow, A403 WP304 Elbow, A403 WP304L Elbow, A403-WP316 Elbow, A403-WP316L Elbow, Seamless Elbows, Large Diameter Fabricated Elbows, 20″ NB Elbow,36″ NB Elbow Supplier, Buttweld Elbows Manufacturer, Duplex 2205 Pipe Elbow, 100% X-Ray Welded Elbows

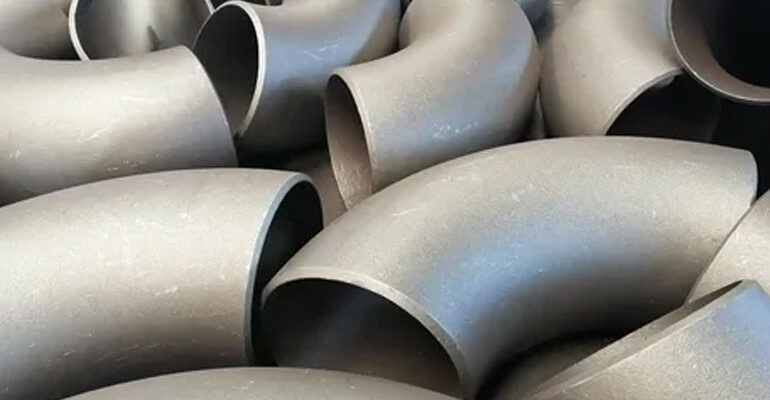

An ISO 9001:2015 Certified Company, Metro Forge & Fittings is a leading manufacturer and supplier of short radius and long radius elbows. We offer our materials with complete certifications and as per international standards. Our production range includes stainless steel elbows, carbon steel elbows, alloy steel elbows, and elbows in special alloys such as Monel, Inconel, Hastealoy. We can manufacture elbows upto 48″ with wall thickness ranging from 1.5 mm thickness up to 40mm for varied sizes
The long radius elbows have a center to end distance that is 1.5 times the NPS in inches (R=1.5D), while the short radius is equal to the NPS in inches (R=1.0D).=Short radius elbows are generally used in tight areas, and long radius elbows are used when space is available and flow is more critical. We can also manufacture and supply carbon steel elbows and stainless steel elbows in non-standard size angles such as 60°, 100°, 120° or 150°.
Our products – stainless steel elbows, carbon steel elbows and alloy steel elbows are regularly exported to Brazil, South Africa, UAE, Bahrain, Italy, Indonesia, Malaysia, United States, Mexico, Chine, Brazil, Peru, Nigeria, Kuwait, Jordan, Dubai, Thailand (Bangkok), Venezuela, Iran, Germany, UK, Canada, Russia, Turkey, Australia, New Zealand, Sri Lanka, Vietnam, South Africa, Kazakhstan and Saudi Arabia, Oman.
Buttwelded Pipe Elbow Production Range
| Outside Diameter: | Seamless Elbow ½″ – 24″ Welded Elbow ½″ – 48″ |
| Fabricated Elbow ½″ – 96″ | |
| Wall Thickness: | 3 mm – 40 mm |
| Schedules: SCH 5, SCH 10, SCH 20, SCH 30, SCH 40, STD, SCH 60, SCH 80, XS, SCH 120, SCH 140, SCH 160, XXS | |
| Bending Radius: | R = 1D – 10D, and available up to 15D, 20D on request |
| Product Angles & Types: | Elbows: 5° to 180° |
| 45° and 90° Long Radius Elbows | |
| Long Radius Returns | |
| Short Radius Elbows and Returns | |
| Value-Added Services: | Hot-Dip Galvanizing |
| Electro Polishing | |
| Sand Blasting | |
| Production Grades: | Duplex Stainless Steel, Super Duplex Stainless Steel, High Nickel, stainless steel, Mild Steel, carbon steel, alloy steel and Titanium |
Manufacturing Standards
| ASME: | ANSI B16.9, ANSI B16.28, MSS-SP-43 |
| DIN: | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN: | EN10253-1, EN10253-2 |
| ASTM A403 – ASME SA403 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
| ASME B16.25 | Buttwelding Ends |
| ASME B16.28 | Wrought Steel Short Radius Elbows and Buttwelding Returns |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
Pipe Elbow Material Grades
| Duplex Steel: | UNS S31803, UNS S32205 |
| Super Duplex Steel: | UNS S32750, UNS S32760 |
| High Nickel Alloys: | HAST C276, HAST C22, Nickel 200 (UNS N02200) Nickel 201 (UNS N02201), Inconel 625, Inconel 825, Monel 400. |
| Stainless Steel: | 304, 304L, 316, 316L, 310, 310s, 321, 321H, 347,347H, 409, 409M, 410, 410s, SMO 254 (UNS S31254),904L (UNS N08904) |
| Mild Steel: | ASTM A366/A366M, ASTM A1008/A1008M, IS 2062 Grade A/B, EN 10025, SS400, A283, A285, E250Br. |
| Carbon Steel Grade: | ASTM A 234 WPB, ASTM A284 Grade D, IS 2062 Grade B, EN 19 (SAE 4140), ASTM A572-50, A106 Gr A/B/C |
| Alloy Steel Grade: | ASTM / ASME A/SA 234 Gr. SA 516 Gr 60 , SA 516 Gr 70 |
| Titanium: | Grade 1 (UNS R50250) Grade 2 (UNS R50400) Grade 5 (UNS R56400) Grade 7 (UNS R52400) |
Marking & Packing
Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.
