Socket Weld Fitting
Socket Weld Fitting

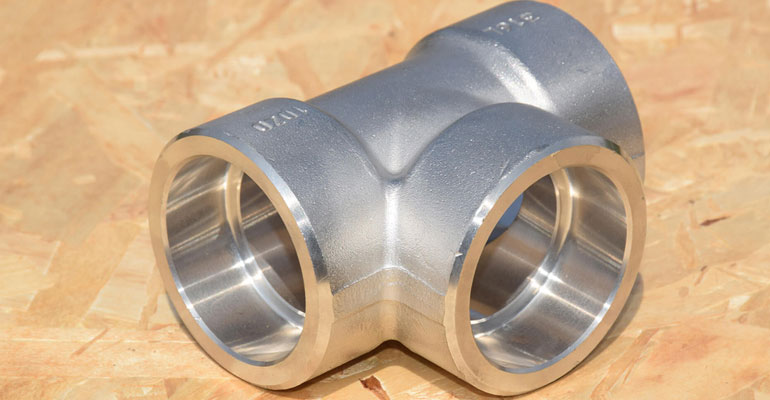

Carbon, Alloy, Stainless Steel Forged Socket Weld Fittings Manufacturer/exporter of High Quality Socket Weld Fittings – Asme B16.11 Socket Weld Elbow, Socket Weld Tee, Socket Weld Cross, Socket Weld Union, Socket Weld Coupling
Pearl Steel Industries one of the prominent manufacturer, exporter and supplier of forged socket weld fittings manufactured in accordance to ASME B16.11. Forged socket weld fittings are available ex-stock in all major stainless steel grades (ASTM A182 F316L, F304L), carbon steel and alloy steel grades. We offer various types of socket weld fittings including socket weld elbow, socket weld tees, socket weld cross, and more. Socket weld fittings are widely used in piping systems across major industries such as petrochemicals, power generation, ship building, diary industry, breweries, waste water treatment, chemical, pharmaceuticals and others.
| RANGE | 15 NB to 100 NB |
|---|---|
| Duplex Steel | UNS S31803, UNS S32205 |
| Super Duplex Steel | UNS S32750, UNS S32760 |
| High Nickel Alloys | HAST C276, HAST C22, Nickel 200 (UNS N02200) Nickel 201 (UNS N02201), Inconel 625, Inconel 825, Monel 400. |
| Stainless Steel | 304, 304L, 316, 316L, 310, 310s, 321, 321H, 347,347H, 409, 409M, 410, 410s, SMO 254 (UNS S31254),904L (UNS N08904) |
| Mild Steel | ASTM A366/A366M, ASTM A1008/A1008M, IS 2062 Grade A/B, EN 10025, SS400, A283, A285, E250Br. |
| Carbon Steel Grade | ASTM A 234 WPB, ASTM A284 Grade D, IS 2062 Grade B, EN 19 (SAE 4140), ASTM A572-50, A106 Gr A/B/C |
| Alloy Steel Grade | ASTM / ASME A/SA 234 Gr. SA 516 Gr 60 , SA 516 Gr 70 |
High Pressure Socket Weld Forged Fittings
| Pressure Class: | 3000LBS, 6000LBS, 9000LBS |
| Products: | Elbow (90° / 45°), Tee (Equal / Reducing), Coupling (Full / Half / Reducing), Cross, Union, Cap, Outlet, Reducer Insert |
| Dimension Specifications: | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size: | 1/2″ – 4″ (15 NB to 100 NB) |
Forged Pipe Fittings Manufacturing Standards
| ASTM A182 – ASME SA182 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Forged Fittings, Socket – Welding and Threaded |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
Stainless Steel
Forged Socket Weld Carbon Steel Fittings
Carbon Steel ASTM A105, A350 LF2, A106 Gr.B, A234 WPB
The material for forged carbon steel fittings conforms to the requirements of ASTM/ASME A105/SA105 The dimensions for forged carbon steel fittings conform to ASME B16.11
